Rivtite Dome Head - Alum body/ Alum Mandrel c/w Neoprene Washer
Product Code: ABT6427
Min Grip Range (mm): 6.4
Max Grip Range (mm): 12.7
Shear N: 4200
Tensile N: 2500
Body Mat: Alum A15056
Mandrel Mat: Alum A17A03
Washer: EPDM Neoprene
Hole: 6.3 - 6.7 mm

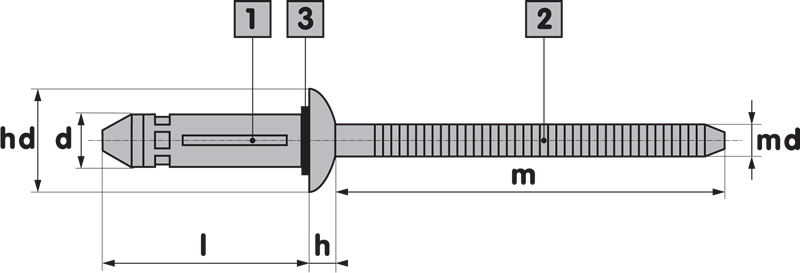

hd: 17.4 + 0.0 / - 0.35mm
d: 6.3 + 0.10 / - 0.06mm
l: 26.5mm
h: 2.95 +/- 0.25mm
m: 26mm
md: 3.9mm
